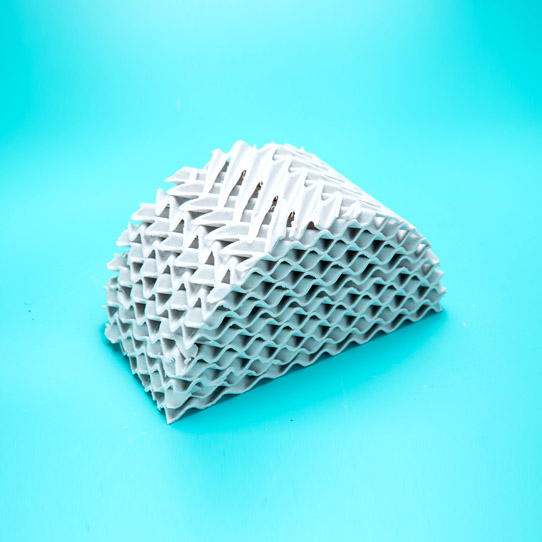

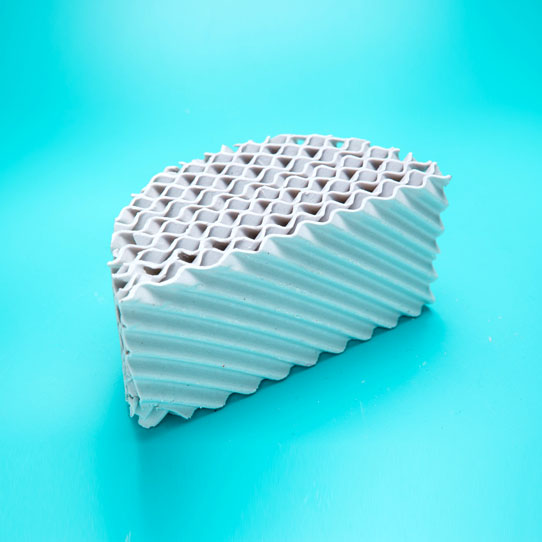

Ceramic Structured Packing


Ceramic Structured Tower Packing consists of many packing units of similar geometric design. Corrugated sheets placed in parallel form cylindrical units called corrugated tower packing. These are a form of highly efficient packing with separating efficiency several times higher than that of loose packing. They have the quality of low-pressure drop, increased operating elasticity, minimum amplifying effect, and maximum liquid treatment compared to random tower packing.

Because of ceramic unique structure, good hydrophilic performance, its surface can form a very thin liquid film of turbulent airflow tilt and tortuous channels can promote the air but not stop match the metal filler air can make the ceramic packing, and its corrosion resistance, high temperature resistant performance of metal filler can't compared. Surface structure has good wetting property, can accelerate liquid flow, make the packing delay fluid volume to a minimum. To reduce the chance of overheating, aggregation, and coking. This product is made of high quality chemical porcelain clay raw material processing and become, resistant to high temperature and high pressure, good chemical stability and high strength, is an ideal carrier to support various types of catalysts.


Inquire Now
Chemical Analysis of Ceramic Structured Packing
Composition Value
SiO2 ≥72%
Fe2O3 ≤0.5%
CaO ≤1.0%
Al2O3 ≥23%
MgO ≤1.0%
Other 2%
Physical Property of Ceramic Structured Packing
Index Value
Specific gravity(g/cm3) 2.5
Water absorption (wt%) ≤0.5
Acid resistance (wt%) ≥99.5
Loss in burn (wt%) ≤5.0
Max. operating temp.(℃) 800
Crush strength (Mpa) ≥130
Moh's hardness(Scale) ≥7
Chemical Analysis of Ceramic Structured Packing
Spec. Specific surface (m2/m3) Bulk density (kg/ m3) Void ratio (%) Obl. angle Pressure drop (mm Hg/m) Theo. plate (m-1) Hydraulic diameter (mm) Liquid load (m3/m2h) Max. factor m/s (Kg/m3)-1
125Y 125 320 90 45 1.8 1.8 28 0.2-100 3.0
250Y 250 420 80 45 2 2.5 12 0.2-100 2.6
350Y 350 470 78 45 2.5 2.8 10 0.2-100 2.5
450Y 450 520 72 45 4 4 7 0.2-100 1.8
550Y 550 620 74 45 5.5 5-6 6 0.18-100 1.4
700Y 700 650 72 45 6 7 5 0.15-100 1.3
