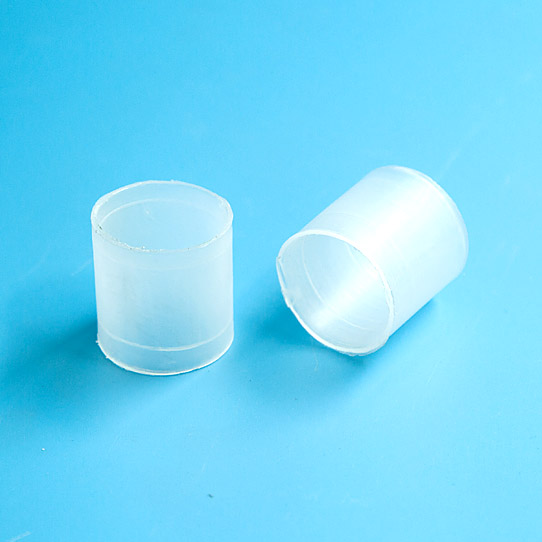

Plastic Rachig Ring

Before the invention of the tower packing shape by Frederick Raschig in 1914, Plastic raschig ring is the most early-developed product in random packing. Plastic Rachig Ring has a simple shape with equal length at its diameter and height. It provide a large surface area within the volume of the column for interaction between liquid and gas or vapour.

Packed columns were filled with quartz, broken glass bottles, broken pieces of pottery, or coke. Operating data obtained from one tower could not be used in a second tower as the packing material was not consistent.

The invention of the Raschig Ring gave the packed column consistency and dependability. Raschig Rings significantly improved the operating characteristics of the column, enabling the performance of the packed column to be duplicated in a second column of equal size.

Because of their low cost, Raschig Rings remain one of the most widely used tower packing materials.

Inquire Now

Technical Specification of Plastic Rachig Ring
Product name			Plastic rachig ring
Material			PP, PVC, CPVC, PVDF, PTFE, PE.
Life span			>3 years
Size mm	Surface area m2/m3	Void volume %	Packing number pieces/ m3	Packing density Kg/m3	Dry packing factor m-1
16	260	91	171000	94	490
25	205	90	50000	112	400
38	130	89	19000	70	305
50	93	90	6500	68	177
80	90	95	1820	66	130
Feature	High void ratio, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high efficiency of mass transfer.
Advantage	1. Their special structure make it has big flux, low pressure drop, good anti-impaction capability. 2. Strong resistance to chemical corrosion, large void space. energy saving, low operation cost and easy to be load and unload.
Application	These various plastic tower packing are widely used in petroleum and chemical, alkali chloride, gas and environmental protection industries with max. temperature of 280°.

Physical & Chemical Properties of Plastic Rachig Ring

Plastic tower packing can be made from heat resistant and chemical corrosion resistant plastics, including polyethylene (PE), polypropylene (PP), reinforced polypropylene (RPP), polyvinyl chloride (PVC), chlorinated polyvinyl chloride (CPVC), polyvinyiidene fluoride (PVDF) and Polytetrafluoroethylene (PTFE). The temperature in media ranges from 60 Degree C to 280 Degree C.

Performace/Material	PE	PP	RPP	PVC	CPVC	PVDF
Density(g/cm3) (after injection molding)	0.98	0.96	1.2	1.7	1.8	1.8
Operation temp.(℃)	90	＞100	＞120	＞60	＞90	＞150
Chemical corrosion resistance	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Compression strength(Mpa	＞6.0	＞6.0	＞6.0	＞6.0	＞6.0	＞6.0
