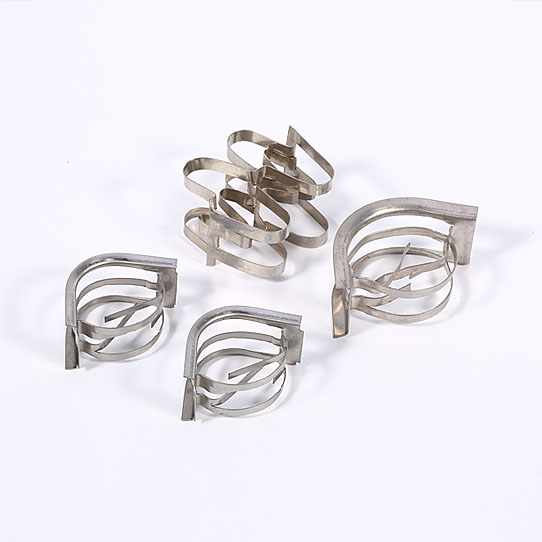

Metal Intalox Saddle IMTP


Metal Intalox Saddle was developed by the United States Norton, between the shape of its saddle-shaped ring and between, and the advantages of both. Intalox metal structure in the saddle-shaped packing ring based on the increase of the annular tendon, to avoid overlap and ensure a certain degree of strength and rigidity out of a number of small claws, an increase of gas-liquid agitation, enhanced mass transfer, thus produce a unique performance.

Metal Intalox Saddle is referred to as domestic-shaped locks Intel fill, enjoy a high international reputation. This new type of efficient packing for the new equipment, packed tower, plate tower height lower than 35%, 30% decrease in diameter, or increase the efficiency of 10-30%, 20-60% reduction in pressure loss. Domestic wet instead of dry distillation distillation pilot study showed that 20 percent can reduce the investment. In short, the use of a new type of ring can be increased Intalox yield or low power costs and improve separation efficiency.

Metal Intalox Saddle can be a variety of materials, such as carbon steel, stainless steel 304, 304L, 410, 316, 316L, etc. to choose from.


Inquire Now
Technical Specification of Metal Intalox Saddle IMTP
Size (mm) Bulk density (304kg/m3) Number (per m3) Surface area (m2/m3) Free volume (%) Dry packing factor m-1
15mm 16.5*10.6*0.25 223 324110 275 97.2 300.2
15mm 16.5*10.6*0.3 263 324110 275 96.7 304.9
25mm 25.9*12.6*0.25 163 127180 415 4.8 489.2
25mm 25.9*12.6*0.3 192 127180 344 95.5 393.2
25mm 25.9*12.6*0.4 266 127180 199 96.6 221.0
40mm 35.4*18.8*0.25 124 51180 151 98.4 158.3
40mm 35.4*18.8*0.3 146 51180 151 98.1 159.7
40mm 35.4*18.8*0.4 203 51180 151 97.4 163.2
50mm 48.5*28.6*0.3 95 15550 97 98.8 101.0
50mm 48.5*28.6*0.4 132 15550 97 98.3 102.5
50mm 48.5*28.6*0.5 169 15550 97 97.9 103.9
60mm 67*37*0.4 113 9000 84 98.6 87.3
60mm 67*37*0.5 145 9000 84 98.2 88.4
70mm 76.5*42.5*0.4 83 4690 61 99.0 62.9
70mm 76.5*42.5*0.4 106 4690 61 98.7 63.5
