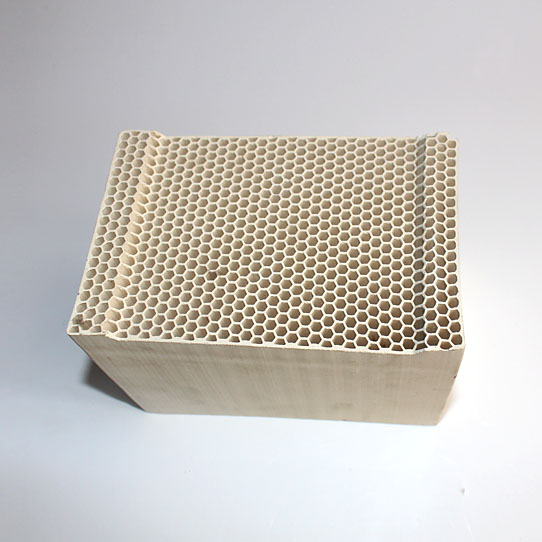

RTO Heat Exchange Honeycomb Ceramic

Honeycomb ceramic regenerators enhance efficiency, save energy, increase output and improve quality, an important and effective measure when dealing with energy and the environment. They're applied on thermal equipment for energy saving within industry. The pores of the Honeycomb ceramic regenerators are square and hexagonal, and the channels of pores are straight and parallel to each other.

This structure reduces the resistance of passing air and enhances the heat exchange efficiency of every channel.

Inquire Now

Functions of RTO Heat Exchange Honeycomb Ceramic

Reduce the thermal loss of exhaust gas, and improve the efficiency of fuel to save energy as.
Enhance the burning temperature based on theory, improve the atmospheric burning, meet the high temperature of thermal equipment enlarge low calorific value fuel, especially the application range of blast furnaces, improve the efficiency of calorific value fuel and reduce the emissions from low calorific value coal gas.
Improve the terms of heat exchange in hearths, increase the output of equipment, enhance the quality of products and cut down on reinvesting in equipment.
Reduce the exhaust emission of thermal equipment, alleviate the air pollution and improve the environment.

Characteristics of RTO Heat Exchange Honeycomb Ceramic

The characteristics of the honeycomb ceramic regenerator are as follow: they have low heat expansion, high specific heat capacity, high specific surface area, low pressure drop, low thermal resistance, good thermal conductivity, thermal shock resistant and much more. So, in metallurgy and chemical industries, it's used as HTAC, while we combine recycling the heat of the emissions, high efficient combustion with reducing NOx. It becomes a true energy saver and decreases Nox.

Materials: Alumina, Dense Alumina, Cordierite, Dense Cordierite, Mullite, Corundum Mullite and others.

Specifications: 100x100x100, 100x150x150, 150x150x150, 150x150x300mm and others.

Hole count: 25x25, 40x40, 43x43, 50x50, 60x60 and others.

Chemical analysis of RTO Heat Exchange Honeycomb Ceramic
Comosition	Value(%)
Al2O3	55~65
SiO2	25~35
MgO	1~5
Fe2O3+TiO2	3~5
Others	＜5

Technical Specification of RTO Heat Exchange Honeycomb Ceramic
Index	Unit	Value
Density	g/cm3	1.7~2.0
Coefficient of heat expansion	(X10-6K-1)(20-800℃)	≤3.0
Specific heat	(J/Kg.k)(20~1000℃)	900~1150
Thermal conductivity	(20~1000℃)	1.2~1.8
Impact thermal resistance	(℃/min)	≥350
Max.working temp.	℃	1320
Water absorption	%	15~25

Dimension and Other Physical Properties
Dimension	Quantity of channels	Wall thickness	Outside wall thickness	Channel width	Void section	Weight piece
150 × 150 × 300	25 × 25	1.0mm ± 0.1	1.2mm ± 0.15	4.8-5.0mm	67%	4.0-5.0kg
150 × 150 × 300	32 × 32	0.9mm ± 0.1	1.2mm ± 0.15	3.8-3.9mm	61.6%	4.6-5.6kg
150 × 150 × 300	40 × 40	0.7mm ± 0.1	1.1mm ± 0.15	2.9-3.1mm	64%	4.7-5.7kg
150 × 150 × 300	43 × 43	0.65mm ± 0.1	1.1mm ± 0.15	2.7-2.9mm	62%	4.8-5.8kg
150 × 150 × 300	50 × 50	0.6mm ± 0.1	0.8mm ± 0.15	2.3-2.5mm	61%	4.8-5.8kg
150 × 150 × 300	60 × 60	0.45mm ± 0.1	0.8mm ± 0.15	1.9-2.1mm	63.4%	4.7-5.7kg
100 × 100 × 150	26× 26	0.8mm ± 0.1	1.2mm ± 0.15	3.0-3.3mm	61%	1.3-1.8kg
100 × 100 × 150	33× 33	0.7mm ± 0.1	1.1mm ± 0.15	2.3-3.6mm	57%	1.3-1.8kg
100 × 100 × 100	13× 13	1.0mm ± 0.1	1.1mm ± 0.15	6.3-6.5mm	57%	0.8-1kg
100 × 100 × 100	20× 20	1.0mm ± 0.1	1.1mm ± 0.15	3.4-3.6mm	57%	0.8-1kg
